Steel Suspended Platform
Steel Suspended PlatformSteel Suspended PlatformSteel Suspended PlatformSteel Suspended PlatformSteel Suspended PlatformSteel Suspended PlatformSteel Suspended Platform

Steel Suspended Platform

Specifications ZLP-500 ZLP-630 ZLP-800 ZLP-1000

1-Decoration on outer wall of high building or installation of structural members;

2-Repair, maintenance and cleansing of outer wall of high building;

3-Inspection, maintenance and repair of Big project, such as big tank,chimney,dam,bridge.

4-Welding, cleansing and painting of large ship;

5-Fabrication and installation of billboard at aerial building.

6-Working height 1-200meters

7-Platform length 1-8meters

8-Loading capacity:630kgs-800kgs-1000kgs

9-Material:Steel Hot galvanized Aluminum ally

10-Ce certificates



Product Details

Technical Information

Model

ZLP630

ZLP800

ZLP1000

Rated load

630Kg

800Kg

1000Kg

Lifting speed

8-10m/min

8-10m/min

8-10m/min

Lifting Height

100 m

100 m

100 m

Power Cable

100 m

100 m

100 m

Steel rope diameter

Ф8.3mm

Ф9.1mm

Ф8.6mm

Hoist

Power

1.5KW*2

1.8KW*2

2.2 KW*2

Voltage

380V/50Hz

380V/50HZ

380V/50HZ

Safety lock

Impact force

30KN

30KN

30KN

Locking Angle

3°~8°

3°~8°

3°~8°

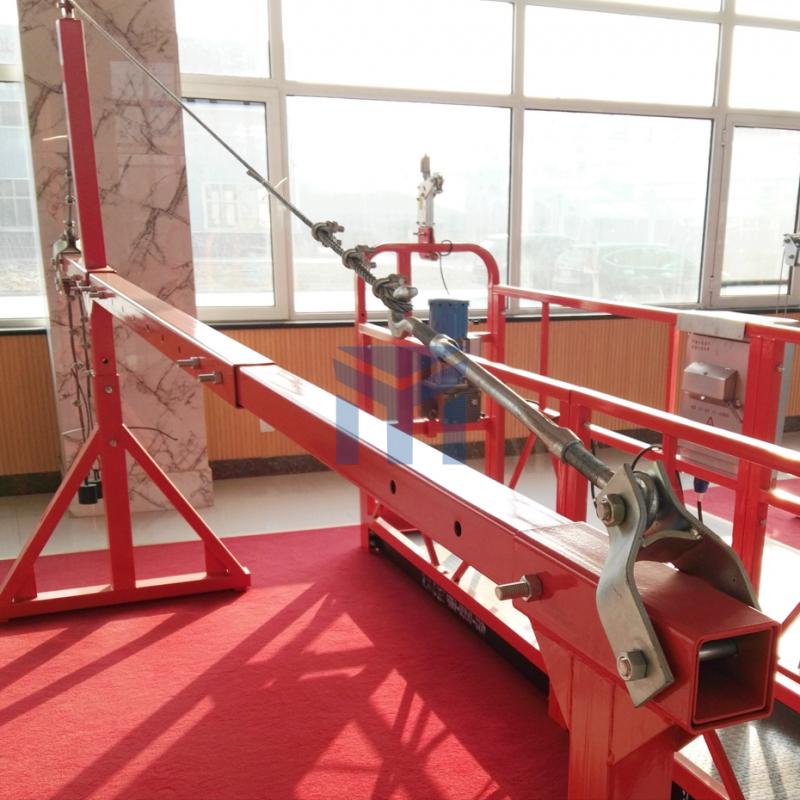

Suspension mechanism

Front beam

1.3~.1.5m

1.3~.1.5m

1.3~.1.5m

Adjustable height

1.44~2.14m

1.44~2.14m

1.44~2.14m

Platform Dimension L×W×H(mm)

6000(1+2+3m)×700×1300

7500(3*2.5)×700×1300

7500(3*2.5)×700×1300

Platform Weight

350

400

450

Suspension mechanism Weight

350

350

350

Counterweight

1000kg

1000KG

1200KG

20’ft container

8-12sets

8-12sets

8-12sets

40’ft container

14-24sets

14-24sets

14-24sets
